Maximum PowerPmax (W)

585

590

595

600

605

Maximum Power Voltage Vmp (V)

33.8

34.0

34.2

34.4

34.6

Maximum Power Current Imp (A)

17.31

17.35

17.40

17.44

17.49

Open Circuit Voltage Voc (V)

40.9

41.1

41.3

41.5

41.7

Short Circuit Current Isc (A)

18.37

18.42

18.47

18.52

18.57

Module Efficiency (%)

20.7

20.9

21.0

21.2

21.4

Power Output Tolerance (W)

0~+5

* Irradiance: 1000W/m2, Module Temperature 25C, Air Mass 1.5

Electrical Specification (NOCT*)

Maximum Power Pmax (W)

443

447

451

454

458

Maximum Power Voltage Vmp (V)

31.5

31.7

31.9

32.0

32.2

Maximum Power Current Imp (A)

14.05

14.09

14.13

14.18

14.22

Open Circuit Voltage Voc (V)

38.5

38.7

38.9

39.1

39.3

Short Circuit Current Isc (A)

14.81

14.85

14.88

14.92

14.96

* Irradiance: 800W/m2, Ambient Temperature 20C, Wind Speed 1m/s

Mechanical Data

Number of Cells

120 Cells (6×20)

Dimensions of Module L*W*H (mm)

2172×1303×35mm (85.51×51.29×1.38 inches)

Weight (kg)

30.7kg

Glass

High transparency solar glass 3.2mm (0.13 inches)

Backsheet

White

Frame

Silver, anodized aluminium alloy

J-Box

IP68 Rated

Cable

4.0mm² (0.006 inches²), 300mm (11.8 inches)

Number of diodes

3

Wind/Snow Load

2400Pa/5400Pa*

Connector

MC Compatible

* For more details please check the installation manual

Temperature Ratings

Nominal Operating Cell Temperature (NOCT)

43±2℃

Temperature Coefficient of Isc

+0.040%/℃

Temperature Coefficient of Voc

-0.250%/℃

Temperature Coefficient of Pmax

-0.340%/C

Maximum Ratings

Operational Temperature

-40-+85℃

Maximum System Voltage

1500V DC-(H)

Max Series Fuse Rating

25A

Packaging Configuration

Module per box

31 pieces

Module per 40' container

558 pieces

Optional

Connector

■MC Original

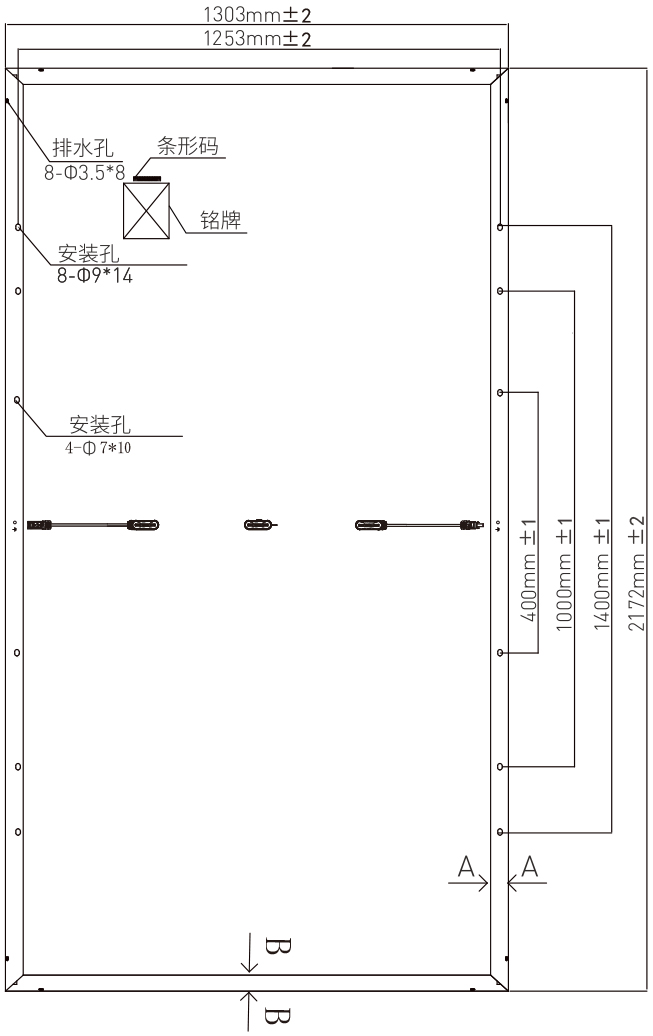

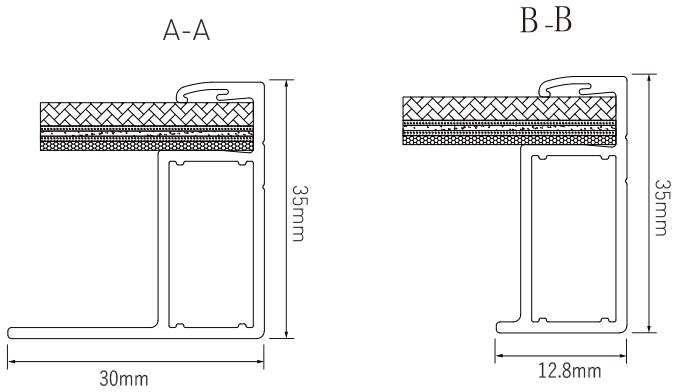

Module Dimension

Back View

I-V Curve at Different Temperature (595W)

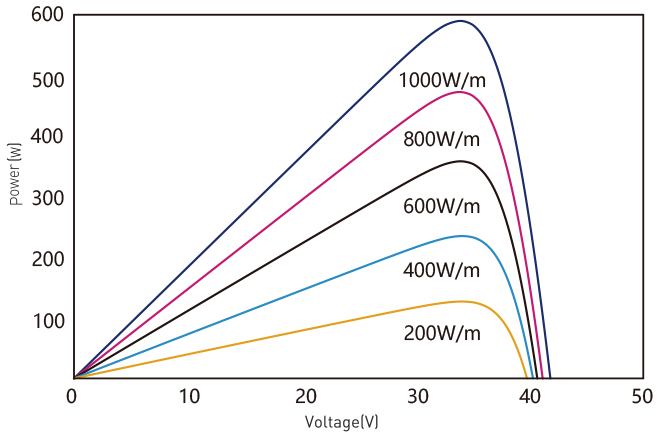

P-V Curve at Different Irradiation (595W)
