Maximum Power Pmax (W)

585

590

595

600

605

Maximum Power Voltage Vmp (V)

33.8

34.0

34.2

34.4

34.6

Maximum Power Current Imp (A)

17.31

17.35

17.40

17.44

17.49

Open Circuit Voltage Voc (V)

40.9

41.1

41.3

41.5

41.7

Short Circuit Current Isc (A)

18.37

18.42

18.47

18.52

18.57

Module Efficiency (%)

20.7

20.9

21.0

21.2

21.4

Power Output Tolerance (W)

0~+5

*Irradiance: 1000W/m2, Module Temperature 25℃, Air Mass 1.5

Electrical Specification

Maximum Power Pmax (W)

443

447

451

454

458

Maximum Power Voltage Vmp (V)

31.5

31.7

31.9

32.0

32.2

Maximum Power Current Imp (A)

14.05

14.09

14.13

14.18

14.22

Open Circuit Voltage Voc (V)

38.5

38.7

38.9

39.1

39.3

Short Circuit Current Isc (A)

14.81

14.85

14.88

14.92

14.96

* Irradiance: 800W/m2, Ambient Temperature 20℃, Wind Speed 1m/s

Mechanical Data

Number of Cells

120 Cells (6×20)

Dimensions of Module L*W*H

2172×1303×30mm (85.51×51.29×1.18inches)

Weight

35.3kg

Front Side Glass

High transparency solar glass 2.0mm (0.08 inches)

Back Side Glass

High transparency solar glass 2.0mm (0.08 inches)

Frame

Silver, anodized aluminium alloy

J-Box

IP68 Rated

Cable

4.0mm² (0.006 inches²), 300mm (11.8 inches)

Number of diodes

3

Wind/Snow Load

2400Pa/5400Pa*

Connector

MC Compatible

Bifaciality

70±5%

* For more details please check the installation manual

Temperature Ratings

Nominal Operating Cell Temperature (NOC)

43±2℃

Temperature Coefficient of Isc

+0.040%/℃

Temperature Coefficient of Voc

-0.250%/℃

Temperature Coefficient of PMAx

-0.340%/C

Maximum Ratings

Operational Temperature

-40-+85℃

Maximum System Voltage

1500V DC-(H)

Max Series Fuse Rating

30A

Packaging Configuration

Module per box

36 pieces

Module per 40' container

648 pieces

可选配置

Connector

■MC Original

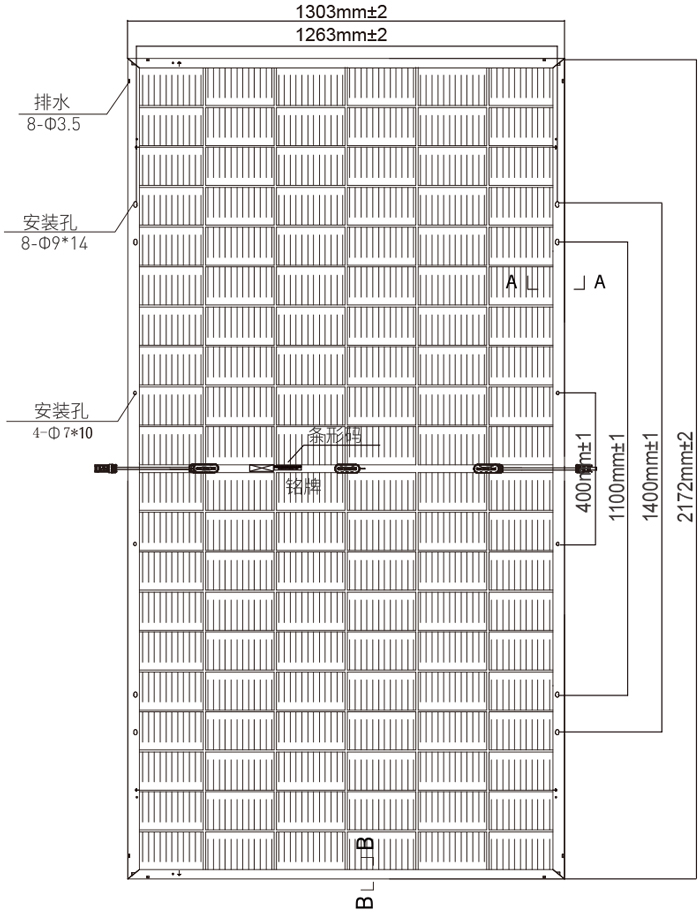

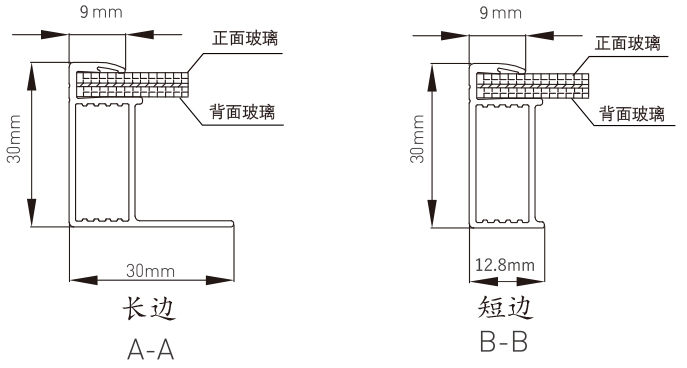

Module Dimension

Back View

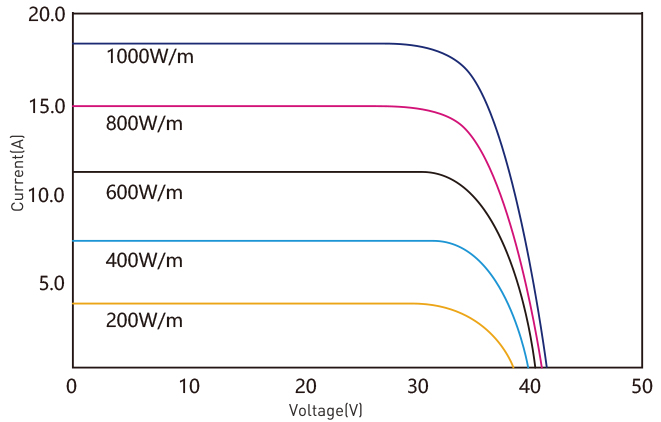

I-V Curve at Different Temperature (595W)

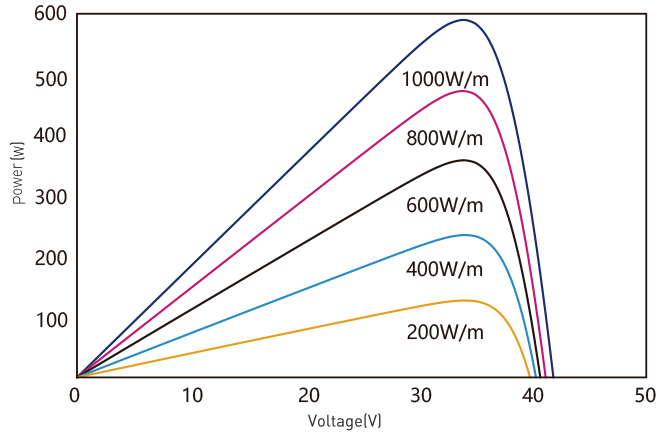

P-V Curve at Different Irradiation (595W)
